We’ve seen it consistently across mature oilfields: as reservoirs move into mid-to-late development stage, conventional water flooding stops delivering acceptable recovery rates. Reservoir heterogeneity increases, water channeling becomes the dominant problem, and operators face a choice between expensive infill drilling or smarter injection chemistry. Polyacrylamide (PAM) addresses that challenge across multiple oilfield applications — from enhanced oil recovery and profile control to fracturing fluid formulation, drilling optimization, and produced water treatment. This article covers how PAM works in each role and what to consider when selecting and applying it.
Why PAM Works in Oilfield Environments: Core Properties That Matter
Anionic polyacrylamide (APAM) dominates oilfield applications because its property profile aligns directly with the challenges of reservoir fluid management. Understanding what these properties actually do in downhole conditions helps explain why PAM outperforms conventional water flooding additives in mature field development.
High Viscosity and Mobility Control PAM solutions at concentrations of 800–2,000 mg/L achieve viscosities of 10–50 mPa·s at reservoir conditions — significantly higher than injection water alone. This viscosity increase reduces the water-oil mobility ratio, which is the fundamental mechanism behind improved sweep efficiency in polymer flooding.
Adsorption on Rock Surfaces APAM adsorbs onto sandstone and carbonate rock surfaces, temporarily altering wettability and reducing relative permeability to water in swept zones. This selective behavior is what makes PAM effective for profile control — it preferentially plugs high-permeability channels without permanently damaging the formation.
Shear Stability and Salt Tolerance Standard APAM degrades under high shear through injection wellbores and loses viscosity in high-salinity formation water above 20,000 mg/L TDS. For high-salinity or high-temperature reservoirs — above 80°C or 50,000 mg/L TDS — salt-resistant and thermally stabilized APAM grades with sulfonated comonomers maintain viscosity where conventional grades fail.
Low Environmental Impact PAM itself has low acute toxicity and meets oilfield environmental standards in most jurisdictions when residual acrylamide monomer is controlled below 0.05% in produced water treatment applications and 0.1% in injection applications.
| Property | Specification Range | Oilfield Relevance |
|---|---|---|
| Molecular Weight | 8–25 million Da | Higher MW = greater viscosity at lower concentration |
| Hydrolysis Degree | 25–35% | Controls charge density and salt tolerance |
| Viscosity (1,500 mg/L, 25°C) | 40–200 mPa·s | Determines mobility control effectiveness |
| Temperature Resistance | Standard: ≤ 80°C / HPAM: ≤ 120°C | Must match reservoir temperature |
| Salinity Tolerance | Standard: ≤ 20,000 mg/L / Salt-resistant: ≤ 100,000 mg/L | Must match formation water chemistry |
| Residual Monomer | ≤ 0.1% (injection) / ≤ 0.05% (water treatment) | Regulatory and environmental compliance |
Main Applications of PAM in Oilfield Extraction

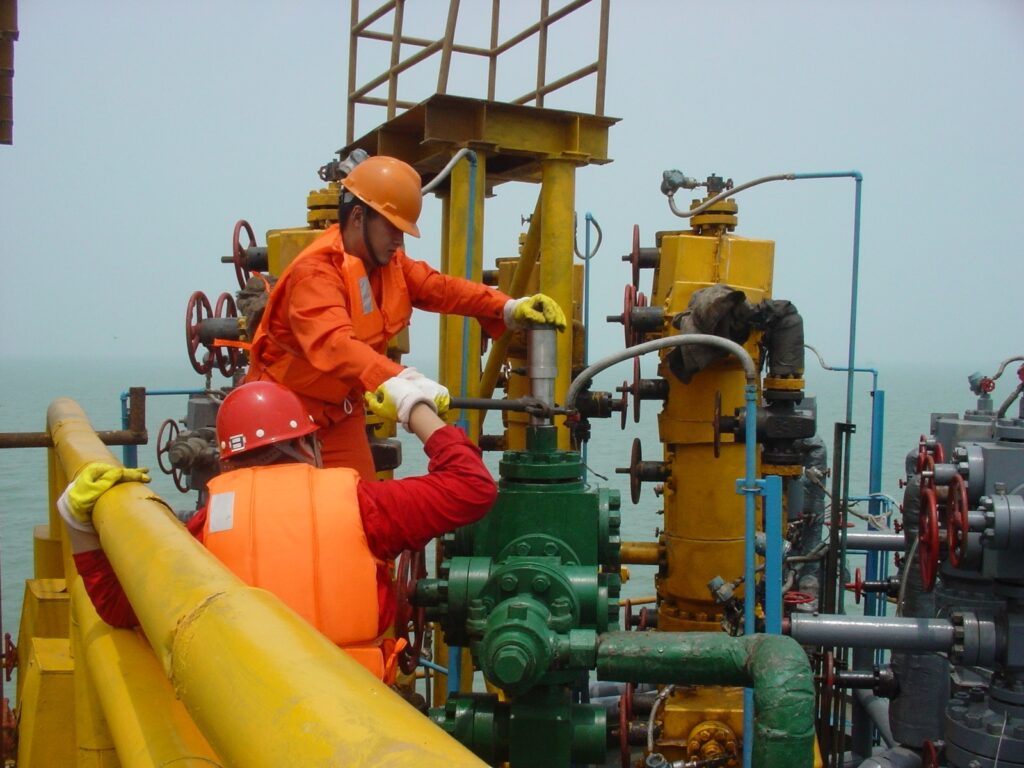

Polymer Flooding for Enhanced Oil Recovery (EOR)
Polymer flooding is the most commercially proven tertiary recovery method globally, and PAM is the polymer of choice in the vast majority of field implementations. The mechanism is straightforward: injecting PAM solution at 800–2,000 mg/L concentration increases injected water viscosity, reduces the water-oil mobility ratio from typically 5–20:1 down to closer to 1–3:1, and forces the displacement front to sweep reservoir volume more uniformly rather than fingering through high-permeability streaks.
At Daqing Oilfield in China — the largest polymer flooding project in the world — APAM flooding increased oil recovery by 10–15% OOIP (original oil in place) over baseline water flooding, with single-well production increases documented across multiple development blocks. Chemical costs for PAM flooding typically represent 20–30% of total project investment, but return on investment reaches 1:5 or higher on well-designed projects where reservoir characterization supports good polymer sweep efficiency.
The critical design parameters are polymer concentration (must maintain target viscosity at reservoir temperature and salinity), injection pore volume (typically 0.3–0.6 PV of polymer slug), and injection rate (must stay below fracturing pressure to avoid channeling through induced fractures rather than matrix).
Profile Control and Water Blocking
In heterogeneous reservoirs where high-permeability zones have been thoroughly water-swept, continuing water injection achieves little — water simply recirculates through the same channels while bypassed oil in tighter zones remains unproduced. Water cut at producing wells often exceeds 90–95% in this situation, making continued water flooding economically marginal.
PAM-based profile control addresses this by injecting higher-concentration polymer — typically 2,000–5,000 mg/L — or cross-linked PAM gel systems that preferentially enter and plug high-permeability zones. The gel forms in situ after injection, blocking the dominant flow channels and diverting subsequent water injection into lower-permeability matrix where bypassed oil remains.
At a Shengli Oilfield development block, PAM profile control reduced producing well water cut from 95% to 85% and increased daily oil production by 30% — results consistent with multiple profile control field trials across Chinese oilfields. The economics depend heavily on well spacing, remaining oil saturation in bypassed zones, and how selectively the gel system enters target intervals rather than the full completion interval.

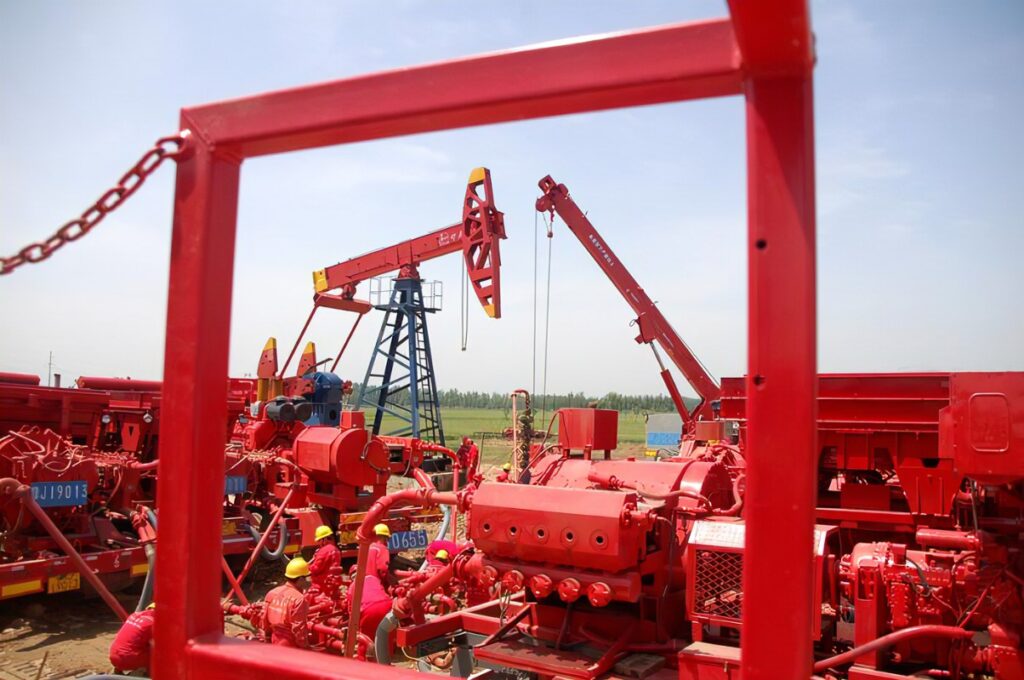

Fracturing Fluid Additive
PAM improves hydraulic fracturing performance through three mechanisms that directly affect stimulation economics.
First, PAM increases fracturing fluid viscosity to 50–200 mPa·s at surface conditions, improving proppant transport capacity and allowing proppant to be placed deeper into induced fractures rather than settling near the wellbore. Better proppant distribution means higher effective fracture conductivity after cleanup.
Second, PAM forms a thin filter cake on fracture face surfaces that reduces fluid leak-off into the formation matrix. Lower leak-off means more fluid energy is available for fracture propagation rather than being lost to the formation, improving fracture geometry control.
Third, PAM-based fracturing fluids show better flowback characteristics than some gel systems — lower surface tension reduces capillary retention of fracturing fluid in the fracture network, improving cleanup and reducing formation damage. The combination of better proppant placement and cleaner flowback typically shortens post-fracture cleanup time and accelerates production response.

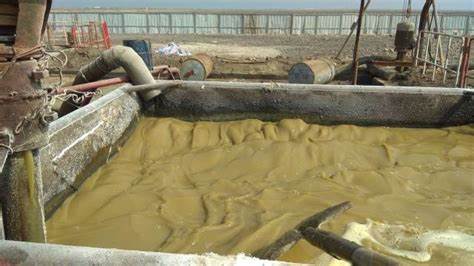

Drilling Fluid Additive
PAM at 200–1,000 mg/L concentration in water-based drilling fluids improves performance across three areas that affect drilling efficiency and wellbore integrity.
Cutting transport improves because PAM increases fluid viscosity and yield point, giving the drilling fluid better carrying capacity for rock cuttings in the annulus — particularly important in high-angle and horizontal wells where gravity works against cuttings transport. Reduced bottom-hole sediment accumulation decreases stuck pipe incidents and improves rate of penetration.
Borehole wall stability improves because PAM adsorbs onto exposed formation surfaces, forming a thin protective film that reduces water invasion into water-sensitive shale formations. Shale hydration and swelling — the primary cause of borehole instability in many formations — is measurably reduced with PAM-treated drilling fluid compared to untreated water-based mud.
Friction reduction in the drill string reduces torque and drag, extending drill bit life and reducing mechanical energy requirements. In extended-reach drilling operations, friction management is critical for maintaining weight on bit at the drill face, and PAM provides a cost-effective contribution to torque reduction without the environmental concerns associated with oil-based mud systems.

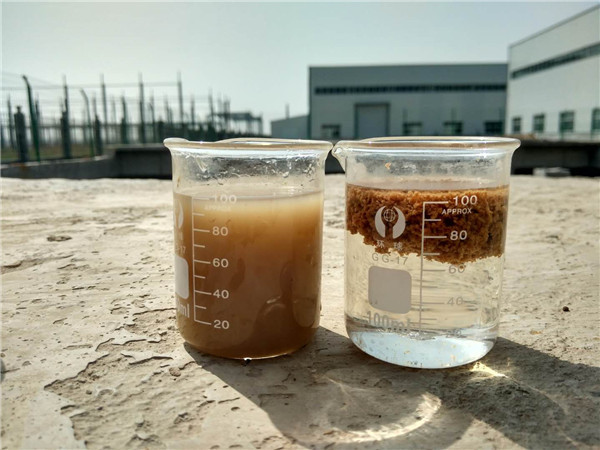

Produced Water Treatment
Oilfield produced water — formation water returned to surface with produced oil — typically contains 200–2,000 mg/L suspended solids, dispersed oil at 100–500 mg/L, and dissolved minerals at high concentrations. Direct discharge without treatment violates environmental regulations in all major producing regions; reinjection for pressure maintenance or disposal requires water quality meeting specific suspended solids and oil content standards.
PAM as a flocculant in produced water treatment works through the same bridging mechanism as in municipal wastewater — polymer chains adsorb onto suspended particles and oil droplets, linking them into settleable or filterable aggregates. In high-salinity produced water where conventional anionic PAM loses effectiveness, amphoteric or salt-resistant PAM grades maintain flocculation performance.
At Daqing Oilfield produced water treatment facilities, optimized PAM-based flocculation achieved 99% suspended solids removal efficiency, producing reinjection water meeting SY/T 5329 quality standards for polymer flooding injection water. Treatment cost with PAM is typically 15–30% lower than achieving equivalent water quality with inorganic coagulants alone, primarily because PAM generates significantly less sludge volume requiring handling and disposal.
Selection and Application Guidelines
Matching PAM Grade to Reservoir Conditions
Grade selection errors are the most common reason polymer flooding or profile control projects underperform against expectations. Two reservoir parameters determine the appropriate PAM specification:
Temperature: Standard APAM degrades above 80°C. For reservoirs between 80–120°C, use thermally stabilized HPAM with N-vinyl pyrrolidone or AMPS comonomers. Above 120°C, PAM-based systems require specialist formulation — consult with your chemical supplier before committing to a grade.
Salinity: Standard APAM loses viscosity above 20,000 mg/L TDS due to charge shielding by divalent cations. For high-salinity formation water, specify salt-resistant APAM with sulfonated functional groups that maintain viscosity up to 100,000 mg/L TDS.
Concentration and Injection Volume Control
PAM concentration must be optimized for each reservoir rather than defaulted to a standard value. Too high — above 3,000 mg/L in matrix injection — risks near-wellbore plugging that reduces injectivity and makes the polymer slug difficult to propagate through the reservoir. Too low — below 500 mg/L — may not achieve the viscosity ratio needed for meaningful mobility improvement.
Field optimization typically involves step-rate injection tests and tracer monitoring to confirm polymer propagation and sweep behavior before committing to full-scale flood design.
Dissolution Protocol for Field Operations
Undissolved PAM gel particles plug injection wellbore perforations and formation pores — a problem that’s difficult and expensive to remediate once it occurs. Dissolve PAM powder at 0.3–0.5% concentration in fresh water at 20–40°C using dedicated mixing equipment with controlled agitation speed. Allow 60–90 minutes of maturation before transferring to injection pumps. Never dissolve in produced water or high-salinity water — the salt content interferes with polymer chain extension and reduces final solution viscosity by 20–40% compared to fresh water dissolution.
FAQ
Q: How do I choose between standard APAM and salt-resistant HPAM for a high-salinity reservoir?
A: Measure your formation water TDS and reservoir temperature first. If TDS exceeds 20,000 mg/L or temperature exceeds 80°C, standard APAM will lose too much viscosity to deliver meaningful mobility control. Salt-resistant HPAM with sulfonated comonomers maintains performance up to 100,000 mg/L TDS and 120°C. We recommend running viscosity retention tests at actual reservoir temperature and salinity before grade selection.
Q: What is the difference between PAM polymer flooding and cross-linked PAM gel for profile control?
A: Polymer flooding uses moderate PAM concentrations (800–2,000 mg/L) to improve mobility ratio across the whole flood pattern. Cross-linked gel uses higher PAM concentrations with a cross-linking agent — typically chromium acetate or polyethylenimine — to form a rigid in-situ gel that physically blocks high-permeability channels. Polymer flooding improves sweep efficiency; gel treatment redirects flow. They target different problems and are sometimes used sequentially.
Q: What is the shelf life and storage requirement for oilfield-grade PAM powder?
A: Sealed bags stored below 35°C in dry conditions last 24 months from manufacture date. Keep away from direct sunlight and moisture — humidity causes surface hydrolysis that reduces dissolving rate and final solution viscosity. Once opened, use within 30 days and reseal between uses. Always verify manufacture date and residual monomer content on the batch certificate before accepting delivery.
PAM Delivers Proven Value Across the Oilfield Value Chain
From improving primary reservoir sweep in polymer flooding to protecting wellbore integrity during drilling and cleaning produced water for reinjection, PAM’s role in oilfield operations extends well beyond any single application. The key to realizing that value is grade selection matched to actual reservoir conditions — temperature, salinity, and permeability heterogeneity — combined with rigorous dissolution and injection protocols that maintain polymer integrity from surface to reservoir.
HyChron supplies anionic, salt-resistant, and thermally stabilized PAM grades for oilfield applications, with technical documentation and field application support. Contact our team for product specifications, sample requests, or reservoir-specific grade recommendations.
