The Bayer Process and Key Chemicals in Alumina Production

What is Alumina and How is it Made?

If you’re just starting to supply chemicals to alumina factories, understanding what alumina is and how it’s produced is essential for offering the right products. Alumina (also known as aluminum oxide, Al₂O₃) is the key ingredient in aluminum production, which is used in everything from cars to airplanes and even kitchen utensils. But how do we get from bauxite ore to alumina and, eventually, to aluminum?

In this article, we’ll walk you through the entire Bayer process of alumina production, the chemicals involved, and why they matter. This information will help you understand how chemical suppliers like you can play a crucial role in improving alumina production efficiency.



What is the Bayer Process for Alumina Production?

The Bayer process is the primary method used to refine bauxite ore into alumina. This process involves several stages, each requiring specific chemicals to separate the aluminum oxide from the impurities in bauxite.

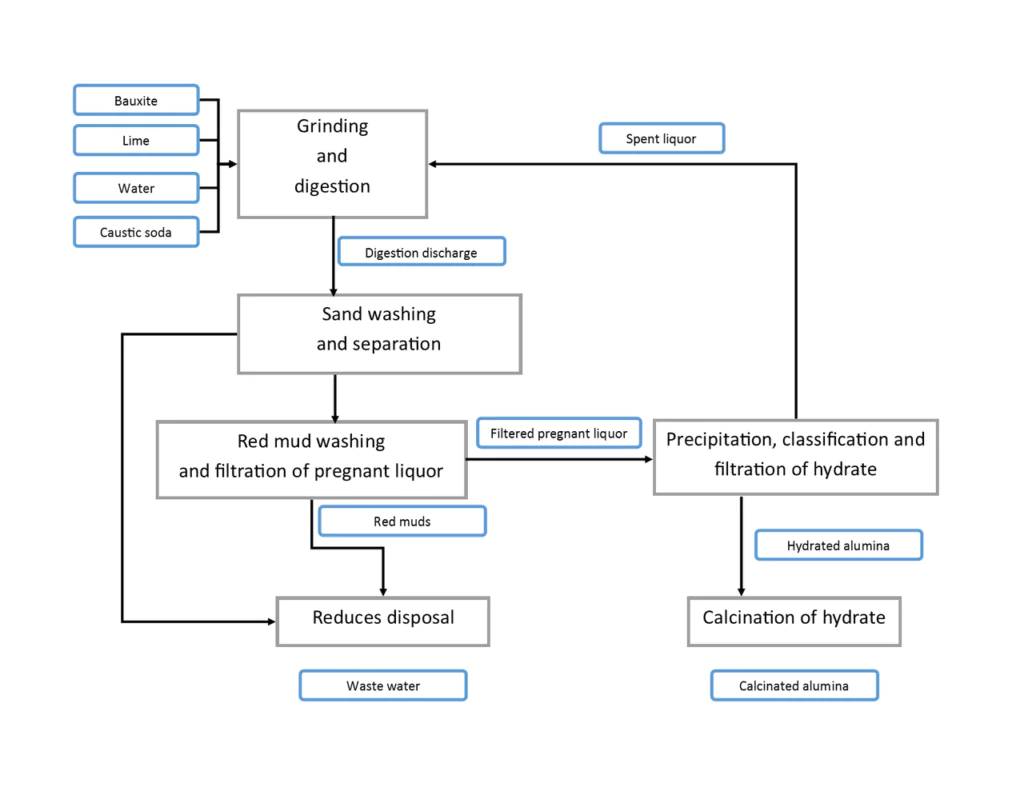

Here’s an easy-to-understand overview of the Bayer process:

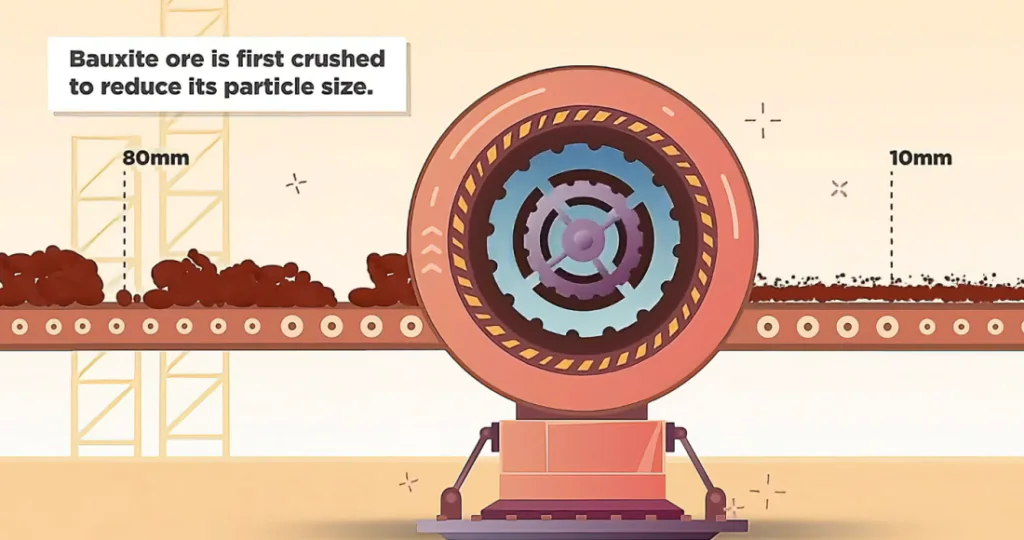

1. Crushing and Grinding
   • Bauxite is crushed and ground into fine particles to increase the surface area, ensuring better chemical reactions in the next steps.

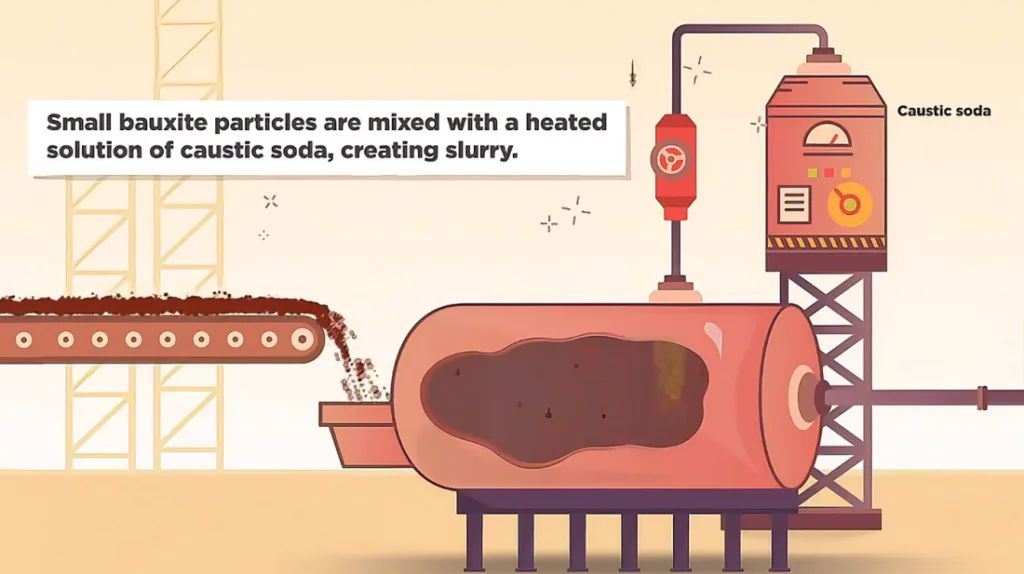

2. Digestion
   • The crushed bauxite is mixed with hot sodium hydroxide (NaOH). The heat and pressure dissolve the aluminum oxide from the bauxite into a sodium aluminate solution, leaving the impurities behind.

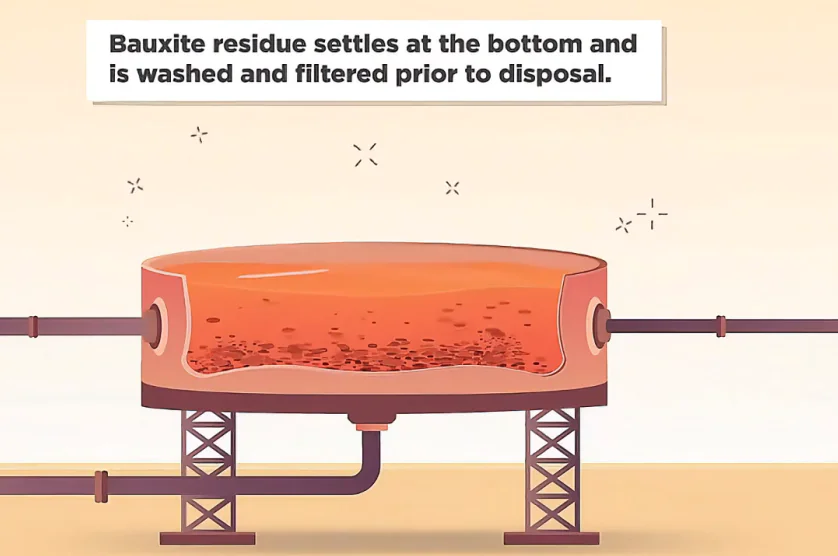

3. Separation
   • After digestion, the mixture contains both sodium aluminate and solid impurities (known as red mud). Flocculants are added to help clump and settle the impurities, allowing for easier separation of alumina-rich liquid.



4. Precipitation
   • The aluminum-rich solution is cooled, and aluminum hydroxide crystals are added as seeds, causing the alumina (aluminum oxide) to precipitate out as solid alumina hydrate.

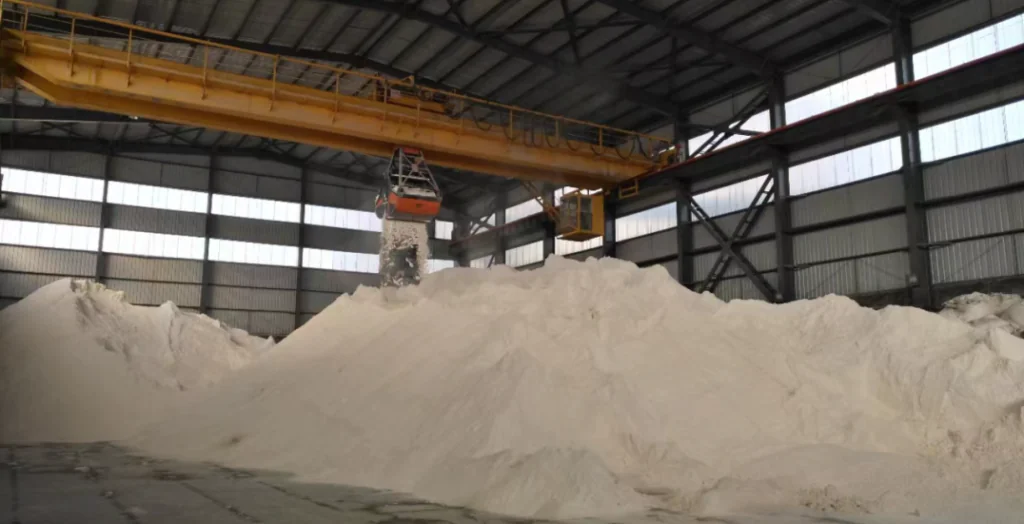

5. Calcination
   • Finally, the alumina hydrate is heated in a rotary kiln to remove the water, leaving behind pure alumina (Al₂O₃) ready for use in aluminum production.



Key Chemicals Used in the Bayer Process

Chemicals are the backbone of the Bayer process, ensuring that alumina is efficiently extracted from bauxite and separated from waste. Below are the key chemicals used in the Bayer process and their specific roles:

1. Sodium Hydroxide (NaOH)

• Role in Process: Sodium hydroxide is used to dissolve aluminum oxide from bauxite during the digestion stage.
• Importance: Without sodium hydroxide, extracting alumina would be impossible. It’s a vital chemical for alumina production.

2. Flocculants

• Role in Process: Flocculants help settle and remove impurities (red mud) by clumping solid particles together.
• Importance:Flocculants improve waste separation efficiency and reduce environmental impacts from red mud.

3. Aluminum Hydroxide (Al(OH)₃)

• Role in Process: Aluminum hydroxide is used as a seed during the precipitation stage to help form alumina crystals.
• Importance: It accelerates the alumina precipitation process, increasing overall production efficiency.

4. Lime (CaO)

• Role in Process: Lime is sometimes used to neutralize the acidity of red mud waste, making it easier and safer to handle.
• Importance: Lime helps improve the environmental safety of red mud and offers a cost-effective solution for waste management.

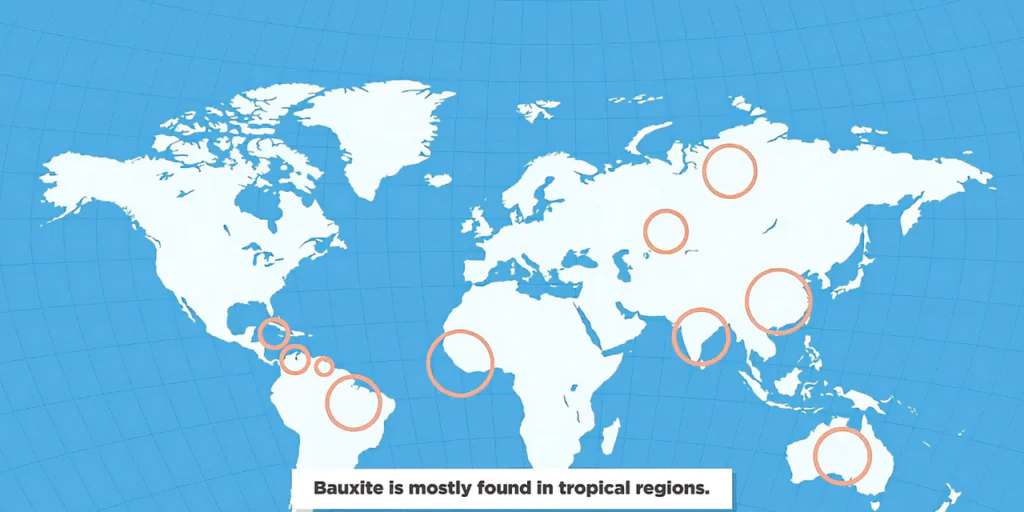

Top 10 Alumina Producers in the World (2023)



Alumina production is a huge industry, with several countries leading the charge. Here are the top 10 alumina producers globally in 2023 based on production estimates:

1. China – 82 million metric tons
2. Australia – 19 million metric tons
3. Brazil – 8 million metric tons
4. India – 5 million metric tons
5. Guinea – 4 million metric tons
6. Jamaica – 3.5 million metric tons
7. Russia – 3 million metric tons
8. United States – 2.5 million metric tons
9. United Arab Emirates – 2 million metric tons
10. Suriname – 1.5 million metric tons

These countries are key players in the global alumina market, providing alumina to aluminum refineries around the world. Understanding where alumina comes from and who the top producers are will help you understand the broader industry context as you work with alumina factories.

As the demand for aluminum continues to rise, the alumina production industry offers huge opportunities for chemical suppliers. By providing high-quality chemicals, you’ll not only support efficient production but also help reduce environmental impact and improve the profitability of your customers.
